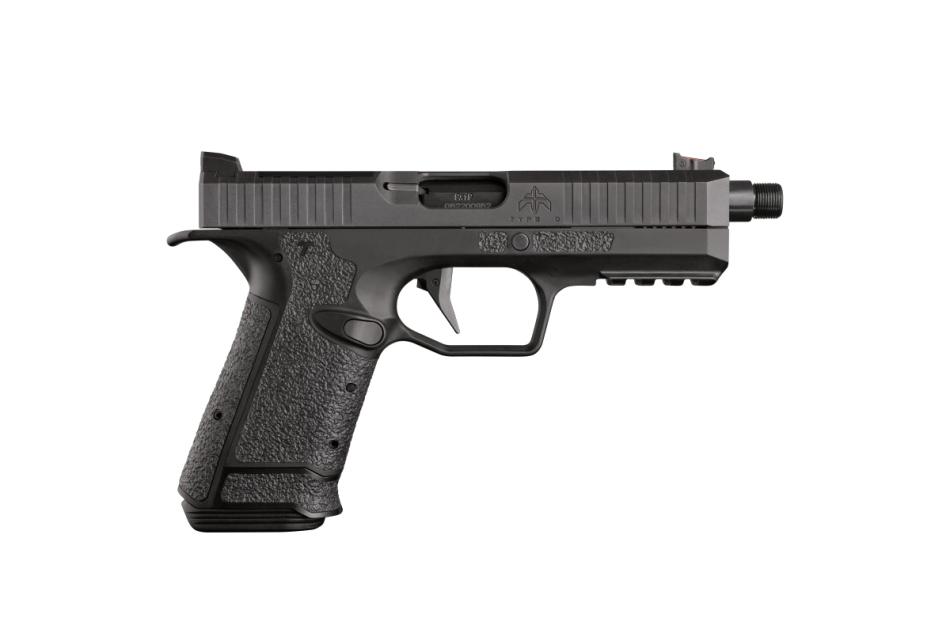

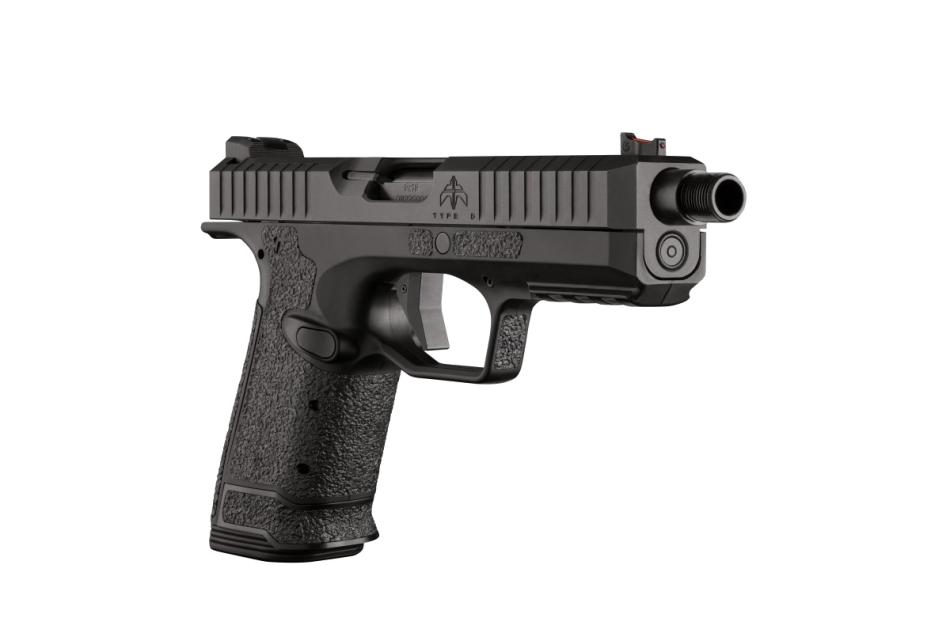

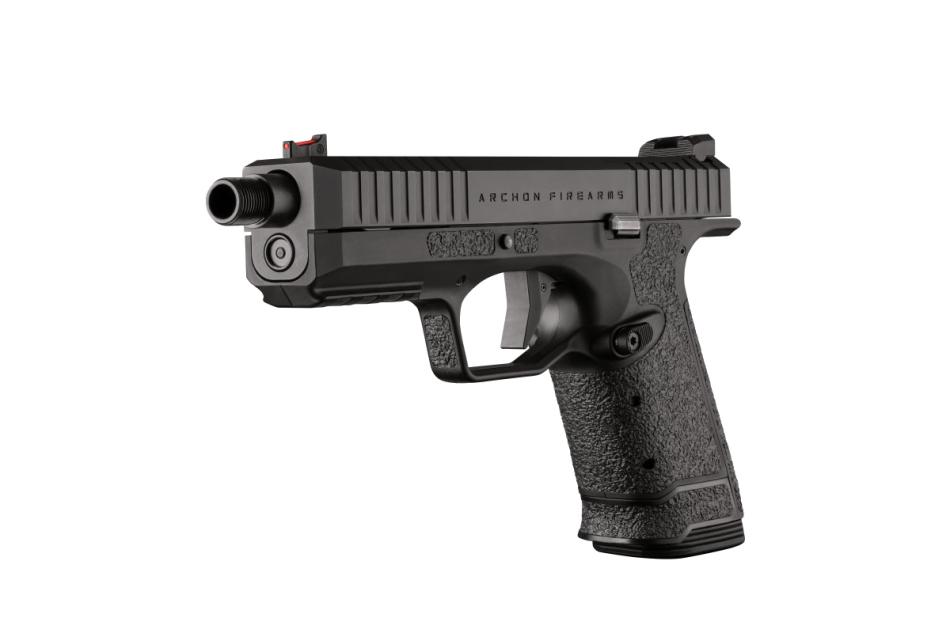

ARCHON Type D, 9 mm Luger, OSR, ACRO C-2/P-2

The Archon Type D model is a compact, high-performance pistol with all the technical features of the Type B but with straight slide design lines intended for customers who prefer a more conservative look.

Archon Type D pistol, manufactured by Czech company Archon Firearms, is known for its exceptional accuracy, minimal muzzle rise, and excellent controllability during rapid fire. It features the unique AF-Speedlock system, which eliminates vertical barrel movement during cycling. The barrel only moves rearward in a straight line by a few millimeters, resulting in a very low bore axis (approx. 12 mm), significantly reducing recoil and allowing faster follow-up shots.

The pistol uses a striker-fired mechanism, a nitrided steel slide, and a modular polymer frame with interchangeable backstraps. Enhanced handling is provided by an extended beavertail, flared magazine well, and reversible magazine release.

Front and rear slide serrations aid in manipulation, and a striker status indicator shows when the pistol is cocked. The flat-faced trigger offers a short reset and a pull weight of 5 lbs (2.27 kg).

This model has threaded barrel with for mounting a silencer (SR) and a cutout for mounting ACRO C-2/P-2 red dot sights.

The pistol comes with two 16-round magazines, two 19-round magazines, modular grip adjustment set, and a soft transport case.


Specifications:

• Caliber: 9 mm Luger
• Barrel length: 5" (127 mm)
• Overall length: 214 mm)
• Height: 132,6 mm
• Width: 36,1 mm
• Magazine capacity: 16 rounds, 19 rounds extended
• Weight without magazine: 840 g
• Slide lock mechanism: AF-Speedlock
• Trigger mechanism: SF
• Frame material: Polymer
• Slide material: Nitrided Steel
• Twist rate: 1:10 right
• Thread: M13,5x1 left
• Sights: Fiber Optic front sight
• Trigger pull: 5 lbs (2,27 kg)
• Optics ready: YES, for ACRO C-2/P-2 models
• Picatinny rail
• Color variant: Black
